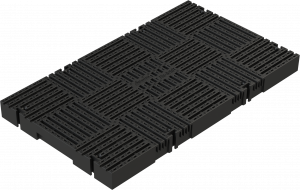

Atlantis Flo-Grid®

Permeable Grid Structure

The Atlantis Flo-Grid®  is a durable and environmentally friendly product made from 100% recycled plastic. The heavy duty design can withstand up to 247 tonnes per square metre, making it suitable for various trafficable surface applications, including access roads, heli pads and light aircraft runways.

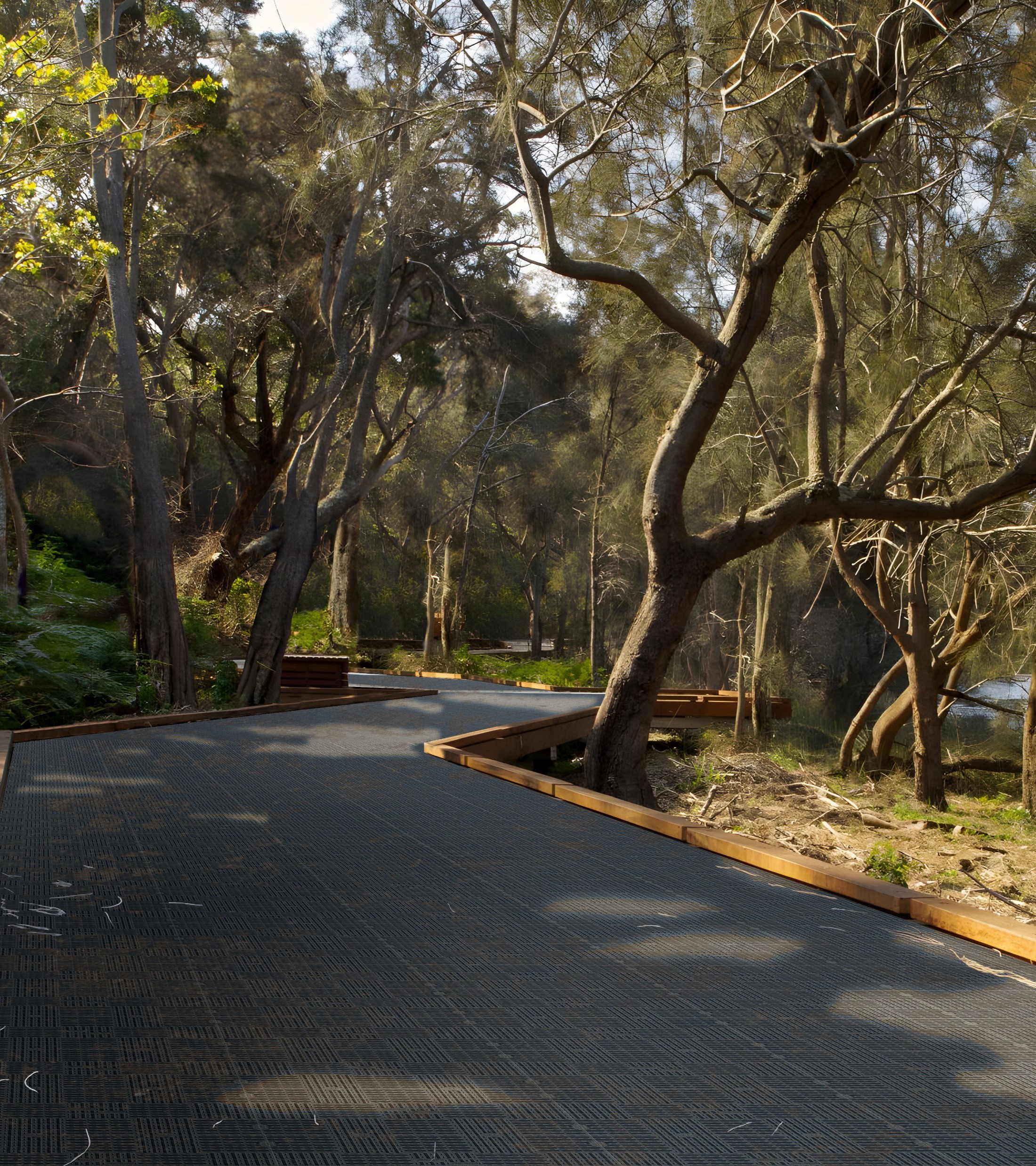

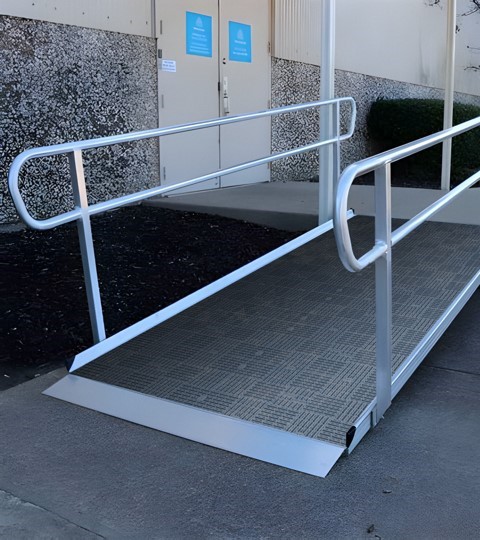

Flo-Grid’s permeable design allows for road edge water infiltration, permeable paving, raised walkways and other applications. It provides a non-slip and stable surface for trails, pathways, and ramps, meeting accessibility requirements.

  • Easy Installation

  • High Load Bearing Capacity

  • Prevents tire ruts

  • Excellent tire twist resistance

  • Replenishes water supply to landscaped areas

  • Unique and easy to use interlocking system

  • No Surface Drains Required

  • Reduces ambient temperature around buildings (When compared to use of hard surfaces)

Flo-Grid® Specifications

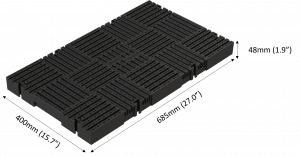

Size 48mm (H) x 400mm (W) 685mm (L)  | (H) 1.9” (W) 15.7” (L) 27.0”
Volume Void 90%
Flow Rate In-Plane Flow Rate @1% gradient (BS EN ISO:12958) 2.56 Litres/Sec/m width
