Atlantis Gro-Wall System
advanced and cost effective vertical gardens
Designed specifically for vertical garden enthusiasts, Gro-Wall® includes many new intuitive and constructive features that benefit both users and designers. New features include a revolutionary watering system, improved wall anchoring and improved planting capabilities.
The Gro-Wall® enables designers and users to install vertical gardens in adverse outdoor environmental conditions and in regulated indoor environments with complete access and control. The new enhancements provide targeted watering control of individual plants, maximum water efficiency, last minute design changes and easy access to irrigation components.
Gro-Wall Slim Series Specifications

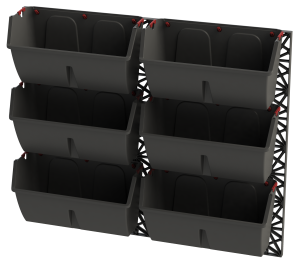

Slim Line
| Part ID | 80081 |
|---|---|
| Dimension (mm) | 682 x 820 x 165 |
| Pot Capacity (L) | 6.00 |
| Weight per kit (kg) | 6.30 |
| Kit vs Module Area | 0.56 / 0.28 m2 |
| Modules per kit | 2 modules |

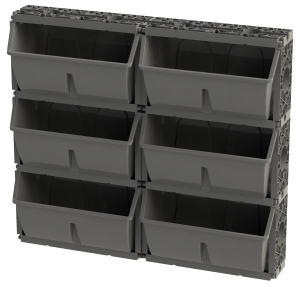

Slim Pro
| Part ID | 80080 |
|---|---|
| Dimension (mm) | 704 x 808 x 165 |
| Pot Capacity (L) | 6.00 |
| Weight per kit (kg) | 9.40 |
| Kit vs Module Area | 0.56 / 0.091 m2 |
| Modules per kit | 6 modules |
Gro-Wall Specifications
Gro-Wall 4.5
| Part ID | 70003_ARCH |
|---|---|
| Dimension (mm) | 450 x 685 x 816 |
| Capacity (L) | 238.96 |
| Weight (kg) | 11.70 |
| Load Limit | 30 t / m2 |
| Flow Rate (@ 1% grad) | 57 L/sec/m |
Gro-Wall Façade
| Part ID | 80052TT |
|---|---|
| Indiv. Cell Dimension (mm) | 52 x 260 x 480 |
| Capacity per cell (L) | 5.84 |
| Weight per cell (g) | 750 |
| Load Limit | 155 t / m2 |
| Flow Rate (@ 1% grad) | 2.65 L/sec/m |
