Atlantis Turf Cell® Reinforcement Structure

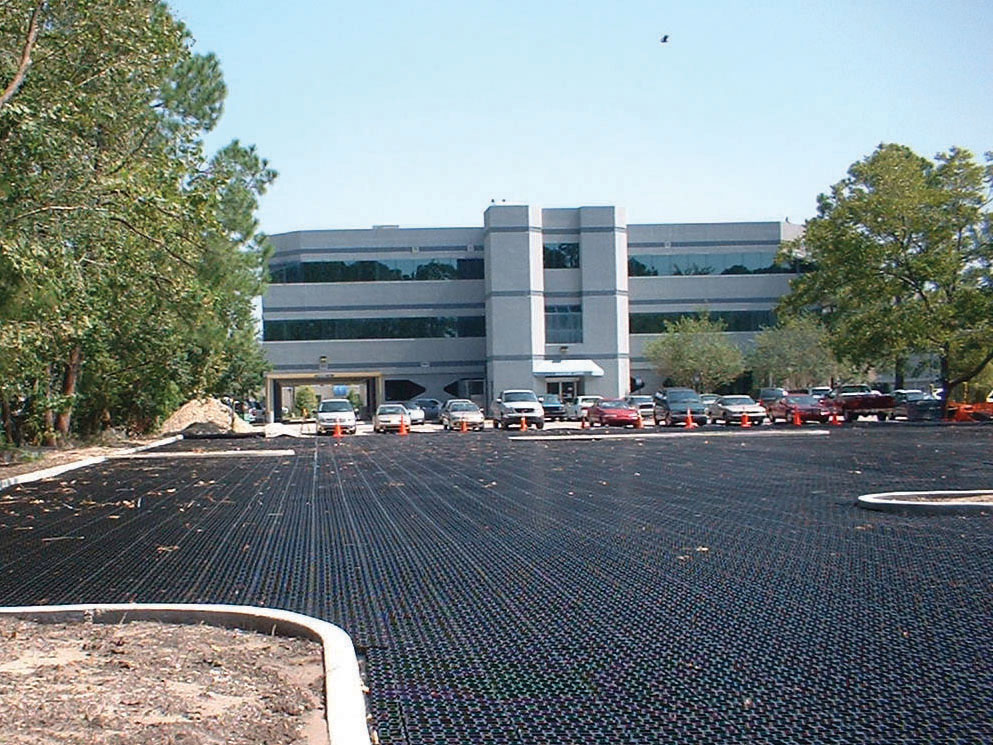

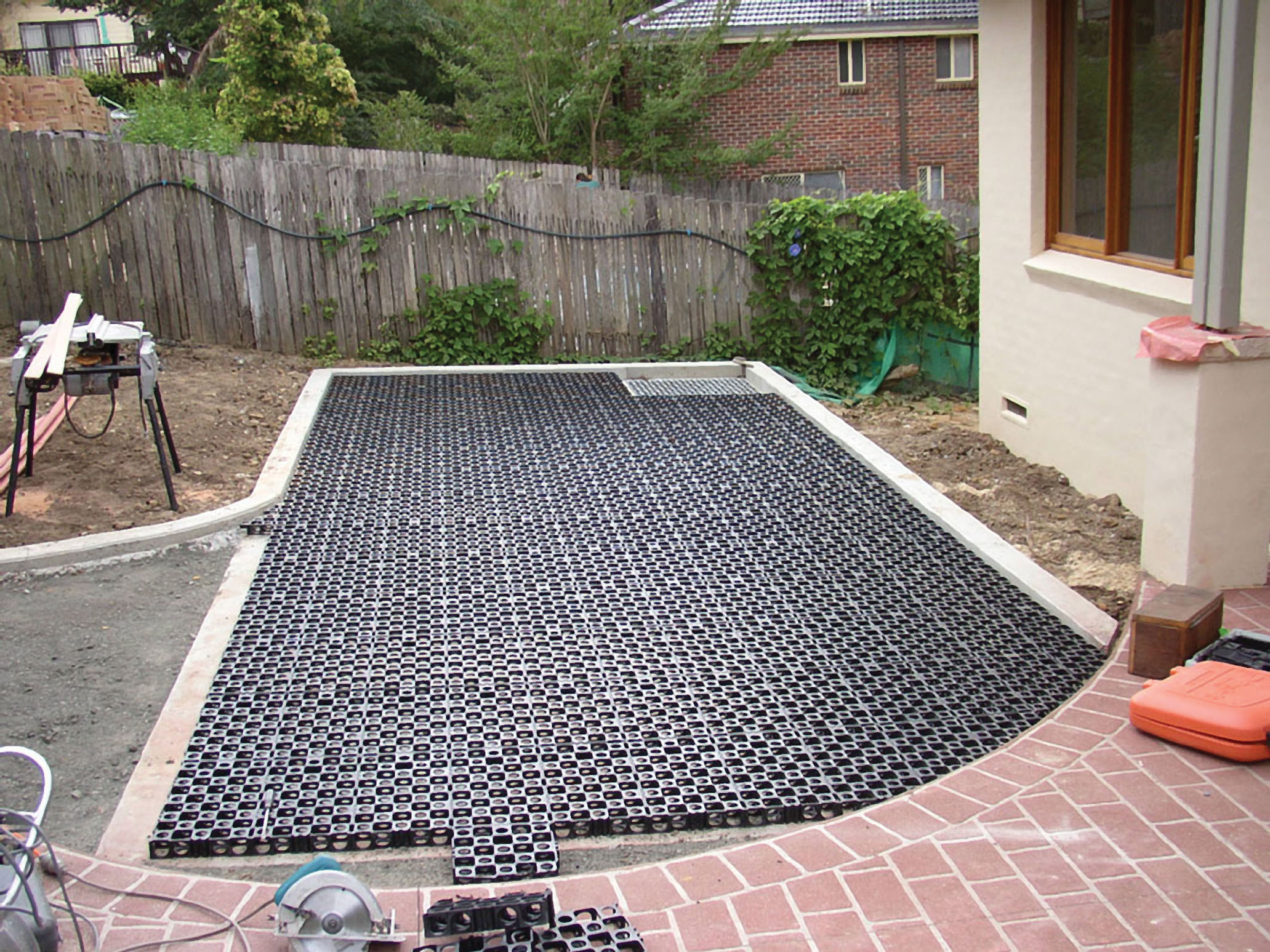

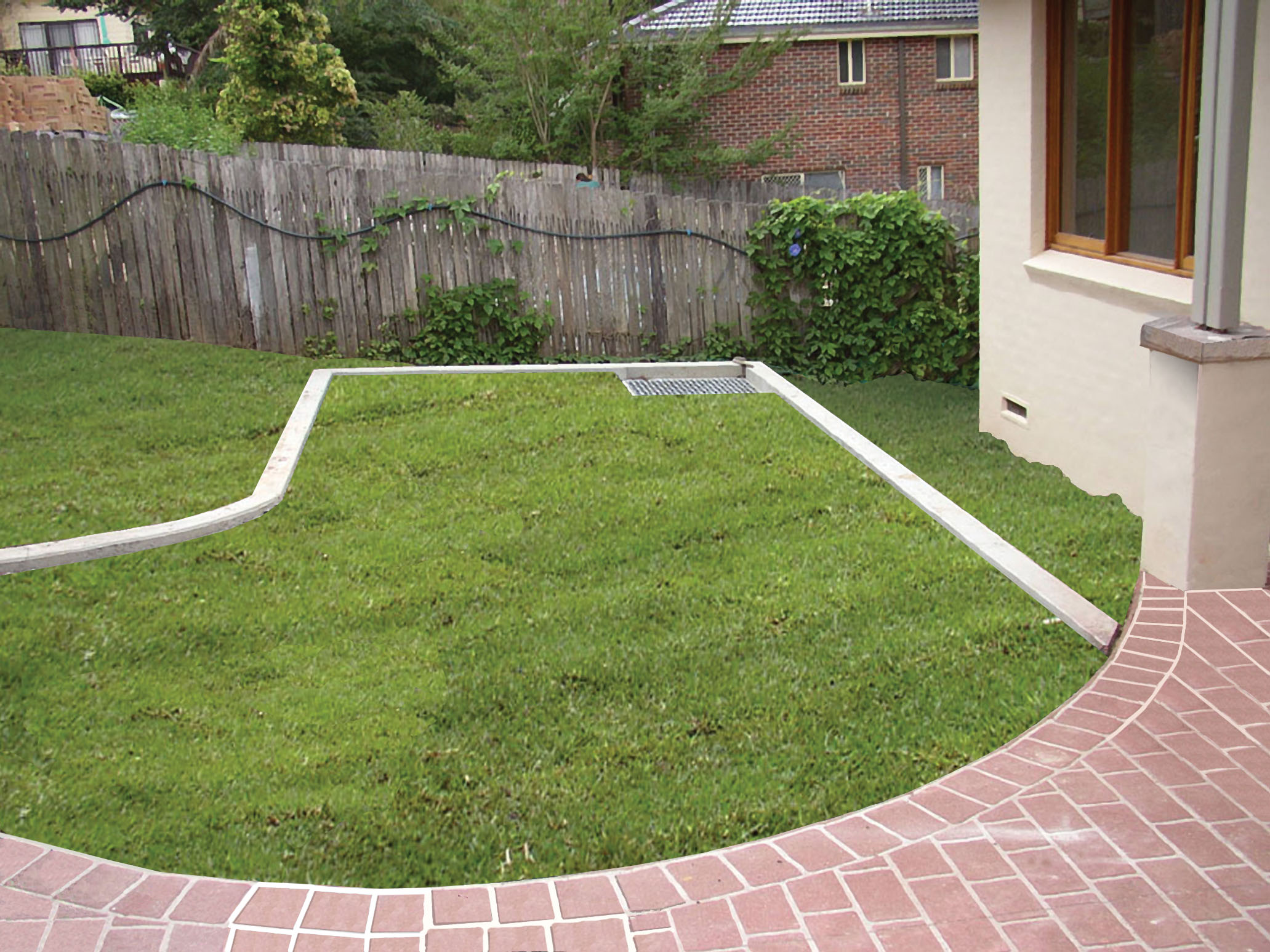

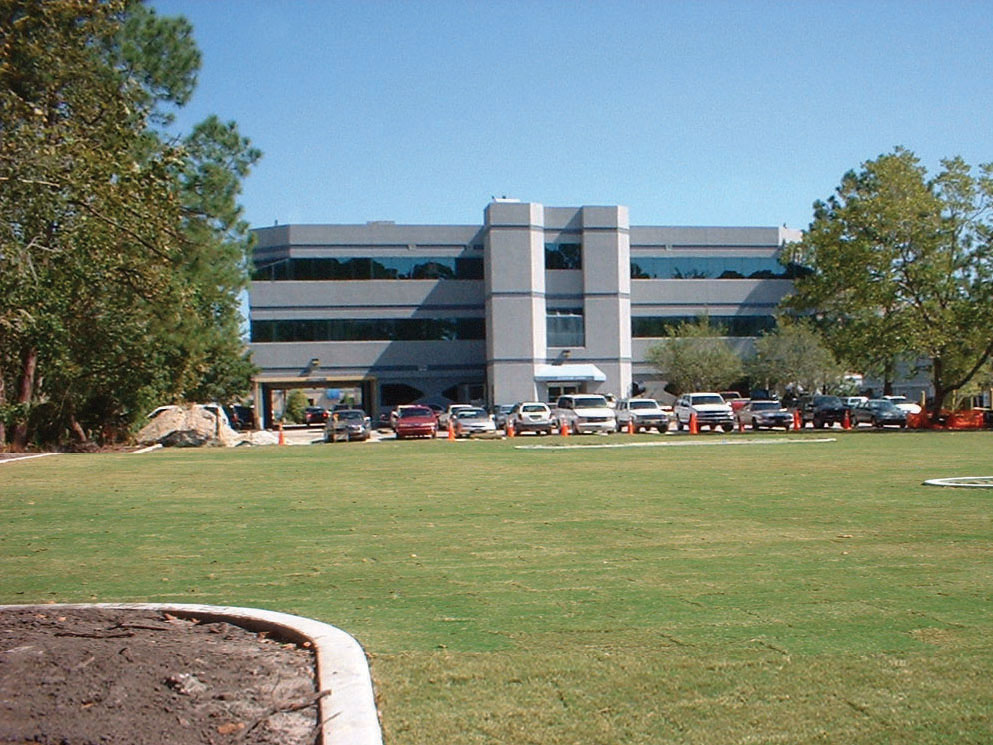

Atlantis Turf Cell® can be used in any landscape where low to medium use parking surfaces, access roads and driveways are required. Turf reinforcement provides a reinforced grid for evenly distributed plant growth.
With Atlantis Turf Cell® the sub-base required for cells is equal to or less than the sub-base required for concrete or bitumen. The elimination of the traditional stormwater system required by impermeable paved areas provides an immediate cost saving when installing Atlantis Turf Cell for the same application.
High Load Bearing Capacity
Prevents tire ruts
Excellent tire twist resistance
Replenishes water supply to landscaped areas
Unique and easy to use interlocking system
No Surface Drains Required
Reduces ambient temperature around buildings (When compared to use of hard surfaces)
|Size||52mm (H) x 260mm (W) 480mm (L)|
|Compressive Strength||130.6 t/m2|
|Flow Rate||17.1 L/s/metre width @ 0.5% gradient|
